GR35I-ZID.DC.CR 116893/A01 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand：ZIEHL-ABEGG
Part No：GR35I-ZID.DC.CR 116893/A01
Fan Type：Centrifugal Fan
Rated Voltage(V)：3~ 380-480
Size(mm)：350
Max.Air Flow(m³/h)：9000
Max.Pressure(Pa)：2000
Input Power(W)：3300
Speed(rpm)：3410

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

GR35I-ZID.DC.CR 116893/A01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

3~380-480

Size(mm)：

350

Max.Air Flow(m³/h)：

9000

Max.Pressure(Pa)：

2000

Input Power(W)：

3300

Speed(rpm)：

3410

Noise(db)：

Description

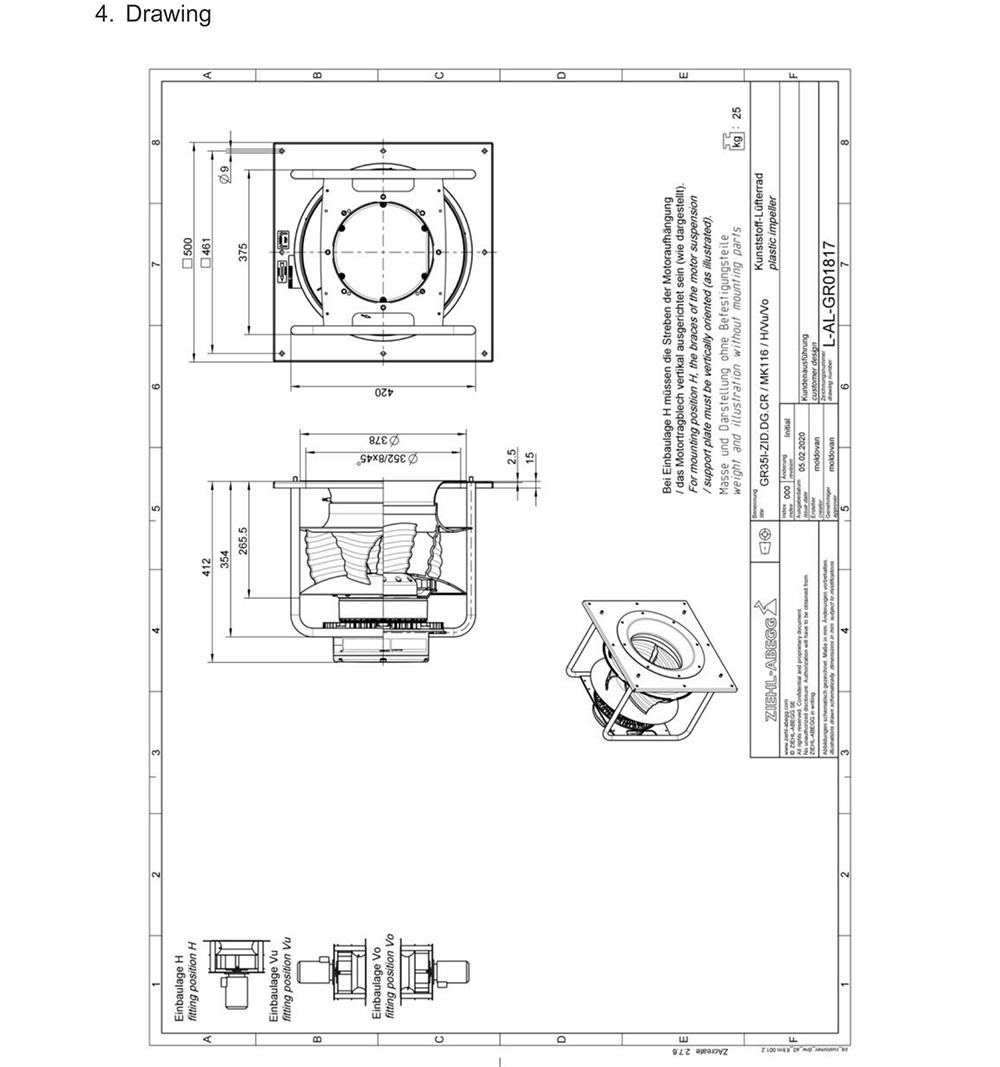

GR35I-ZID.DC.CR 116893/A01 Ziehl-abegg Specification drawing：
